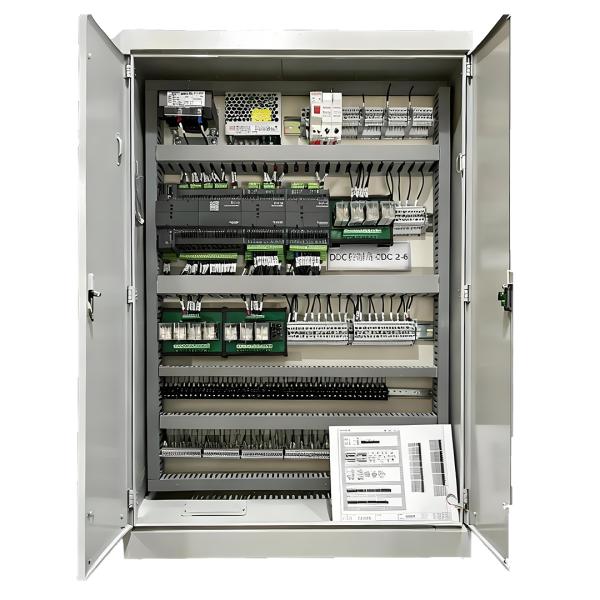

Laundry and Gym Electrical Control Cabinet Distribution Box for Facilities

Model Number : KL57879865788

Certification : ISO9001，CCC

Place of Origin : China

MOQ : 20

Price : USD28-68889

Payment Terms : T/T,Western Union

Delivery Time : 20 Days

Packaging Details : Carton/Wooden Carte

Shape : Rectangular

Ventilation : Yes

Size : Customizable

Waterproof : Yes

Weight : Customizable

Usage : Indoor/Building/Gym/Laundry

Corrosion Resistance : Yes

Material : Metal

Installation : Wall mounted / Floor Standing

Lock Type : Key Lock

Number Of Doors : 1 or 2

Fireproof : No

Color : Grey / Others

Contact Now

Laundry and Gym Electrical Control Cabinet Distribution Box for Facilities

Product Attributes

Attribute	Value
Shape	Rectangular
Ventilation	Yes
Size	Customizable
Waterproof	Yes
Weight	Customizable
Usage	Indoor / Outdoor
Corrosion Resistance	Yes
Material	Metal
Installation	Wall mounted / Floor Standing
Lock Type	Key Lock
Number Of Doors	1 or 2
Fireproof	No
Color	Grey / Other Colors

Applications:

Provides power distribution and protection for washing machines, dryers, and ironing equipment in laundry rooms.
Controls ventilation, lighting, and safety devices in gyms and fitness centers.
Ensures stable and safe operation** of multiple electrical loads in commercial facilities.
Suitable for residential complexes, hotels, gyms, and industrial laundry facilities.

Technical Specifications:

Technical Dimension	Core Requirements
Electrical Performance	Adapt to local voltage (single-phase 110V/220V, three-phase 380V/415V) and frequency (50/60Hz); rated current 30-200A (determined by total power of equipment); short-circuit withstand current 10-50kA, equipped with overload protection; grounding resistance ≤4Ω.
Control Function	Shunt switch control (circuit breakers/contactors); optional intelligent remote monitoring and audible-visual fault alarm (for overload/short circuit, etc.).
Protection & Structure	Protection class ≥IP54; enclosure made of cold-rolled steel with spray coating/304 stainless steel; equipped with heat dissipation holes/fans; separate layout of strong and weak electricity inside.
Environmental Adaptability	Operating temperature -10℃~50℃, humidity 10%-90%RH (no condensation), suitable for the humid environment of laundries and dusty environment of gyms.

Material Options

Cold rolled steel / 304 0r 316 Stainless Steel

IP Rating

IP55 IP54 IP65
